Planetary Gear

China Custom Planetary Gear Manufacturer for Your Equipment
Custom-Made to Your Drawings or Samples
Prototype to High-Volume OEM Production
Engineering Support for Cost-Effective Solutions
Backlash-Optimized Gear Solutions
High-Precision Internal Ring Gears by Power Skiving
Get A Quote

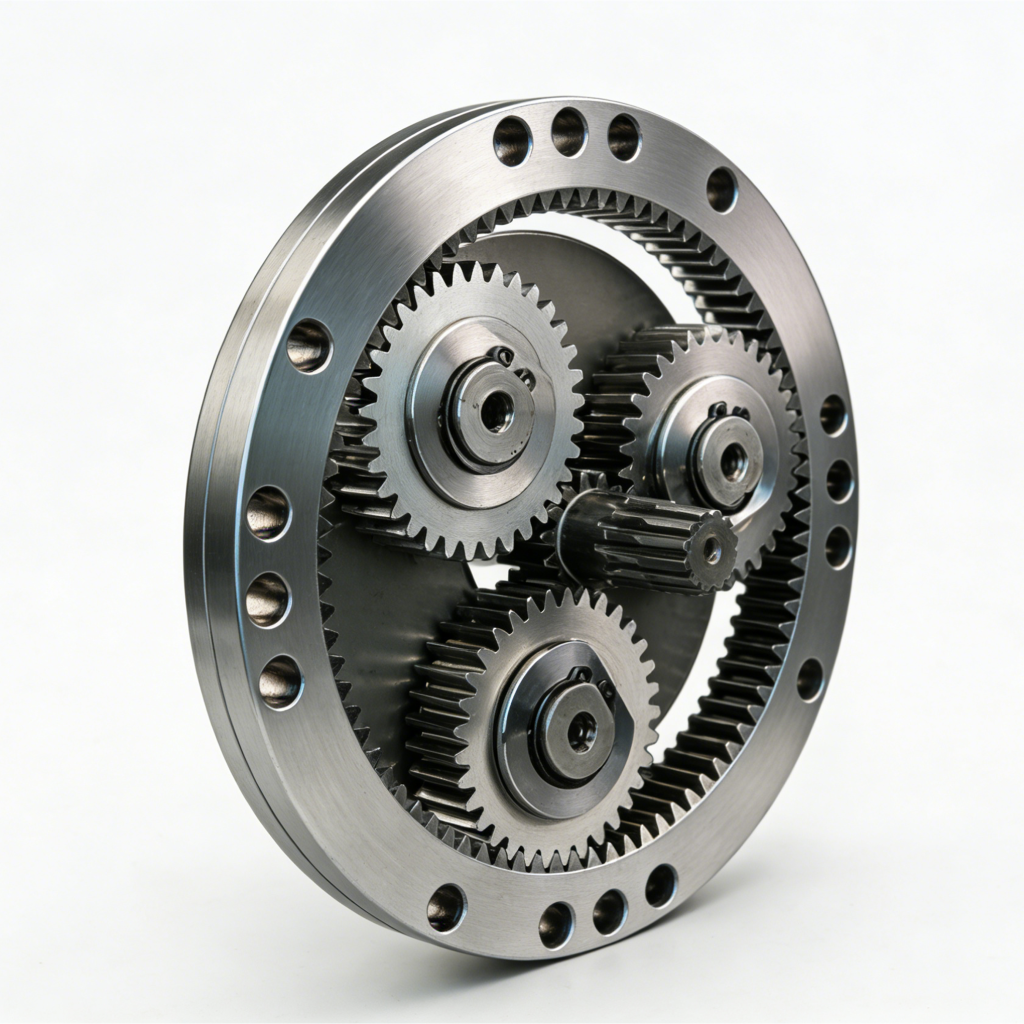

Planetary-gear-planet-gear-solutions-custom-gear-manufacturer-Belon

Why Choose BELON As Your Planetary Gear Supplier



As a reliable Chinese manufacturer of precision planetary gears, BELON supplies high-performance planetary gear components engineered to withstand demanding operating conditions across multiple industries.

Our planetary gear sets span a wide module range from M0.2 to M45. We provide fully customized sun gears, planet gears, ring gears and other planetary gear parts, fabricated strictly in accordance with your technical drawings, physical samples or field application requirements. Every production phase is rigorously controlled — covering tooth profile design, dimensional tolerances, material selection, heat treatment and final quality inspection. BELON ensures consistent, reproducible quality from prototype development and small-batch validation through full mass production.

  • ISO 9001 Quality Management System
  • 15+ Years of Professional Gear Manufacturing Experience
  • Export Business to Over 35 Countries
  • More Than 1,000 Annual OEM Custom Gear Projects
  • Custom Planetary Gear Manufacturing from Prototype to Mass Production
Get A Quote

What Planetary Gears BELON Can Make

A typical planetary gear set consists of four core components: sun gear, planet gear, planet carrier, and ring gear.

  • Sun gears: located at the center of the system, are smaller external gears.
  • Planet gears: Usually multiple (commonly 3-4) identical small gears that mesh simultaneously with both the sun gear and the ring gear. These planet gears are connected by a planet carrier.
  • Planet carrier: A frame that supports and connects all the planet gears. The planet gears can rotate on their own axes (rotation), while the planet carrier rotates around the sun gear, carrying the planet gears with it (revolution).
  • Ring gear: A large internal gear located on the outermost edge, whose internal teeth mesh with all the planet gears.

A planetary gear set is an ingeniously designed gear system that, through different combinations of its four components, achieving high transmission ratios, high load capacity, and multi-functional power transmission and speed change within a compact space.

Features:

  1. Coaxiality: The input and output shafts are on the same centerline, resulting in a very compact structure.
  2. Power Splitting: The input power from the sun gear is simultaneously split and transmitted to the ring gear and planet carrier through multiple planetary gears.
  3. High Load Capacity: Due to the load being evenly distributed among multiple planetary gears, it offers high load capacity, smooth transmission, and low noise.
  4. Versatility: By fixing any one of the components (sun gear, planet carrier, or ring gear) and using the other two as input and output, different transmission modes can be achieved (reduction, acceleration, reverse, direct drive, etc.).

BELON supplies a comprehensive range of planetary gears spanning Module 0.2 to Module 45 to accommodate diverse specification requirements for all types of your equipment.

Production Craft
Powder Metallurgy
Gear Hobbing
Gear Milling
Gear Shapping
Power Skiving
Gear Broaching
5-Axis Machining
Module
M0.5-M3.0
M0.2-M45
M3-M45
M0.5-36
M0.2-M6.0
M1.0-M3.0
Min.M3.0
Outer Diameter
4-300mm
4-12000mm
10-6000mm
20-1600mm
20-600mm
20-300mm
60-1600mm
Surface Roughness
Ra1.6
Ra1.6
Ra1.6
Ra1.6
Ra0.8
Ra0.8
Ra0.4
Quality Level
DIN 8
DIN 8
DIN 8
DIN 8
DIN5
DIN5
DIN4

Planetary Gear Size:

BELON completes over 1,000 gear and shaft projects annually for global OEM clients. All planetary gear products listed below fall within our manufacturing capacity. We also deliver custom planetary gear solutions covering Module 0.2 to Module 45, catering to diverse specification requirements for your full range of equipment.
planetary-carrier-planet-carrier-planetary-gear-set-component

Planetary Carrier

  • Material: Q345D
  • Heat treatment: NA
  • Accuracy: NA
More About
epicyclic-gearing-belon-machinery

Epicyclic Gearing

  • Material: 8620
  • Heat treatment: Carburizing
  • Accuracy: DIN8 + DIN6
More About
small-planetary-gear-set-belon-machinery

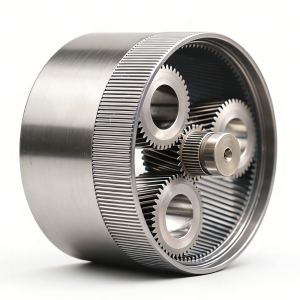

Small Planetary Gear Set

  • Material: Stainless steel
  • Heat treatment: NA
  • Accuracy: DIN 6
More About
Planetary-gear-carrier-belon-machinery

Planetary Gear Carrier

  • Material: 42CrMo
  • Heat treatment: QT plus Inductive hardening
  • Accuracy: NA
More About
small-planetary-gears-belon-machinery

Small Planetary Gears

  • Material: 42CrMo+20CrNiMo
  • Heat treatment: QT + Carburizing
  • Accuracy: DIN8 + DIN6
More About
planet-carrier-planetary-gear-supplier-belon

Planet Carrier

  • Material: 42CrMo
  • Heat treatment: QT+Nitriding 650-800HV
  • Accuracy: DIN 8
More About
single-planetary-gear-set-belon-machinery

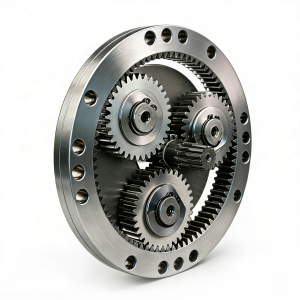

Single Planetary Gear Set

  • Material: 42CrMo + 8620H
  • Heat treatment: Nitriding + Carburizing
  • Accuracy: DIN8 + DIN6
More About
planetary-gear-set-belon-machinery

Planetary Gear Set

  • Material: 8620H + 42CrMo
  • Heat treatment: Carburizing + Nitriding
  • Accuracy: DIN6 + DIN8
More About

How We Can Make Planetary Gears

We select the optimal manufacturing process for every component within a planetary gear system to meet your targets for precision, performance, production efficiency and cost control. For internal ring gears, we adopt power skiving or gear grinding to deliver precision exceeding DIN6 standards. For sun gears and planet gears, fine hobbing is typically applied to small-module parts, while grinding is used for medium and large modules — consistently achieving DIN6 quality grades. All production processes are customized to match the technical specifications outlined in your planetary gear set drawings.

Internal Gear Power Skiving

A skiving cutter and internal gear rotate together to cut the internal helical teeth. Controlled cutting and coolant flow help keep the internal gear power skiving process stable, forming accurate tooth profiles and smooth internal gear surfaces.

Planetary Sun Gear And Planet Gear Fine Hobbing

During fine hobbing, the cutter and gear blank rotate together to form the tooth profiles. Controlled cutting and indexing help produce accurate teeth, while coolant keeps the hobbing process stable and supports consistent tooth shape and surface quality.

How Do We Inspect Planetary Gear

BELON performs a comprehensive inspection of the sun gear, planet gears, internal ring gear, and planetary carrier, covering critical requirements such as dimensions, material, heat treatment, gear accuracy, and geometric tolerances. After confirming that all components meet the requirements of your drawings, we assemble the planetary gear set for meshing testing. The assembled system is evaluated for center distance, backlash, smooth rotation, tooth contact, and running noise to identify potential assembly or meshing issues before shipment.

Planetary Carrier Accuracy Inspection



The precision of a planetary carrier directly governs the positioning of planet gears and the meshing performance of the entire planetary gear system. BELON inspects critical dimensional attributes of planetary carriers, including planet pinhole location, inter-hole spacing, concentricity, parallelism and runout. Precise carrier geometry ensures proper planet gear alignment, stable gear meshing, and uniform load distribution across the planetary gear set.

Contact BELON Now

Planetary Gear Meshing Testing



After individual components are inspected, BELON performs planetary gear meshing testing to verify the interaction between the sun gear, planet gears, internal ring gear, and planetary carrier. The test focuses on smooth rotation, backlash, tooth contact, interference, and meshing consistency under specified assembly conditions. This process helps identify potential issues such as excessive backlash, tight meshing, uneven tooth contact, or abnormal running resistance before shipment, supporting reliable operation of the complete planetary gear system.

Contact BELON Now

Advantages of Our Planetary Gear

Our custom planetary gears feature superior precision, high durability and long-term operational reliability. If you require non-standard gears engineered for your unique application, BELON is your trusted partner. We deliver bespoke planetary gear solutions fully optimized for your actual working conditions.
gear-icon

Broad Module Range M0.2–M45

From miniature precision planetary gears up to heavy‑duty industrial planetary gear sets.
gear-icon

Made‑to‑Order OEM Planetary Gears

Custom planetary components manufactured strictly according to your drawings, samples or technical specifications.
gear-icon

Application‑Driven Manufacturing

Optimal materials and production workflows based on your load and working‑condition requirements.
gear-icon

Reverse Engineering Support

Professional drawing validation, design optimization and reverse engineering from your existing parts.
gear-icon

Prototype to Mass‑Production Flexibility

Flexible manufacturing capacity covering prototype development, small‑batch trials and high‑volume serial production.
gear-icon

Proven Global OEM Experience

Serve OEM partners in more than 35 countries with stable, high‑performance planetary gear manufacturing solutions.

Download to Learn More about Us

Get a closer look at BELON’s precision gear manufacturing capabilities and quality commitment. Download our company brochure, ISO certificate and available planetary gear inspection reports to evaluate our expertise, production capabilities, and quality standards.
file-text-belon

ISO Certificate

Our ISO certification and quality management credentials.
Download
file-text-belon

Company Brochure

Learn more about BELON’s manufacturing capabilities, processes, and industries served.
Download
file-text-belon

Quality Report Template

Preview the quality report templates available for your custom planetary gear project.
Download

Planetary Gear FAQs

A planetary gear system consists of three core components: a central sun gear, multiple planet gears mounted on a planetary carrier, and an outer stationary ring gear. When power is input, the sun gear drives the planet gears to rotate and revolve around the sun gear inside the ring gear. This combined rotation transfers torque and achieves speed reduction.

They are widely adopted in mining equipment, construction machinery, agricultural machinery, marine drives, railway transmissions, wind turbines and heavy industrial reducers.

Planetary gear sets deliver high torque density within a compact footprint. Load is shared evenly across multiple planet gears, so they withstand heavy loads while keeping small size and light weight. They feature high transmission efficiency, stable operation, low vibration and coaxial input/output layout, which saves installation space compared with parallel-shaft gear drives.

Planetary gear systems are extensively applied across heavy-duty industries: mining crushers and conveyors, construction excavators and mixers, farm tractors and harvesters, marine propulsion and winch drives, railway traction and auxiliary equipment, wind power gearboxes, as well as heavy-duty automation machinery.

Service life mainly depends on operating load, speed, lubrication condition, material and heat treatment.

Properly installed and maintained BELON planetary gear sets can achieve long service life under rated working conditions. We select suitable materials and heat treatment processes according to your actual working parameters to meet your target design life.

Compared with conventional parallel-shaft gearboxes, planetary gearboxes have higher torque density and more compact structure. Multiple planet gears share the load to reduce single-tooth stress. The coaxial input and output design simplifies machine layout. They run more smoothly with lower noise and can maintain high transmission efficiency even under continuous heavy-load operation.

Yes. BELON can manufacture individual planetary components or complete matched sets, including sun gears, planet gears, internal ring gears, and planet carriers. Manufacturing these components with controlled dimensional and gear accuracy helps ensure proper compatibility and meshing within the planetary system.

Whether you need a replacement component, prototype, or complete OEM gear set, BELON can manufacture according to your drawings and specifications.

Your Precision
Planetary Gear Partner
From prototype to production, BELON delivers precision planetary gears tailored to your specific application. Send us your gear drawings, physical samples, or technical specifications today and get a fast technical review and quote.
