Medium module gears represent the ideal balance between strength and precision, These versatile power transmission components offer enhanced load-bearing capacity while maintaining smooth operational characteristics. The optimized tooth profile ensures efficient power transfer across various industrial applications, delivering reliable performance and exceptional durability in demanding operating conditions.

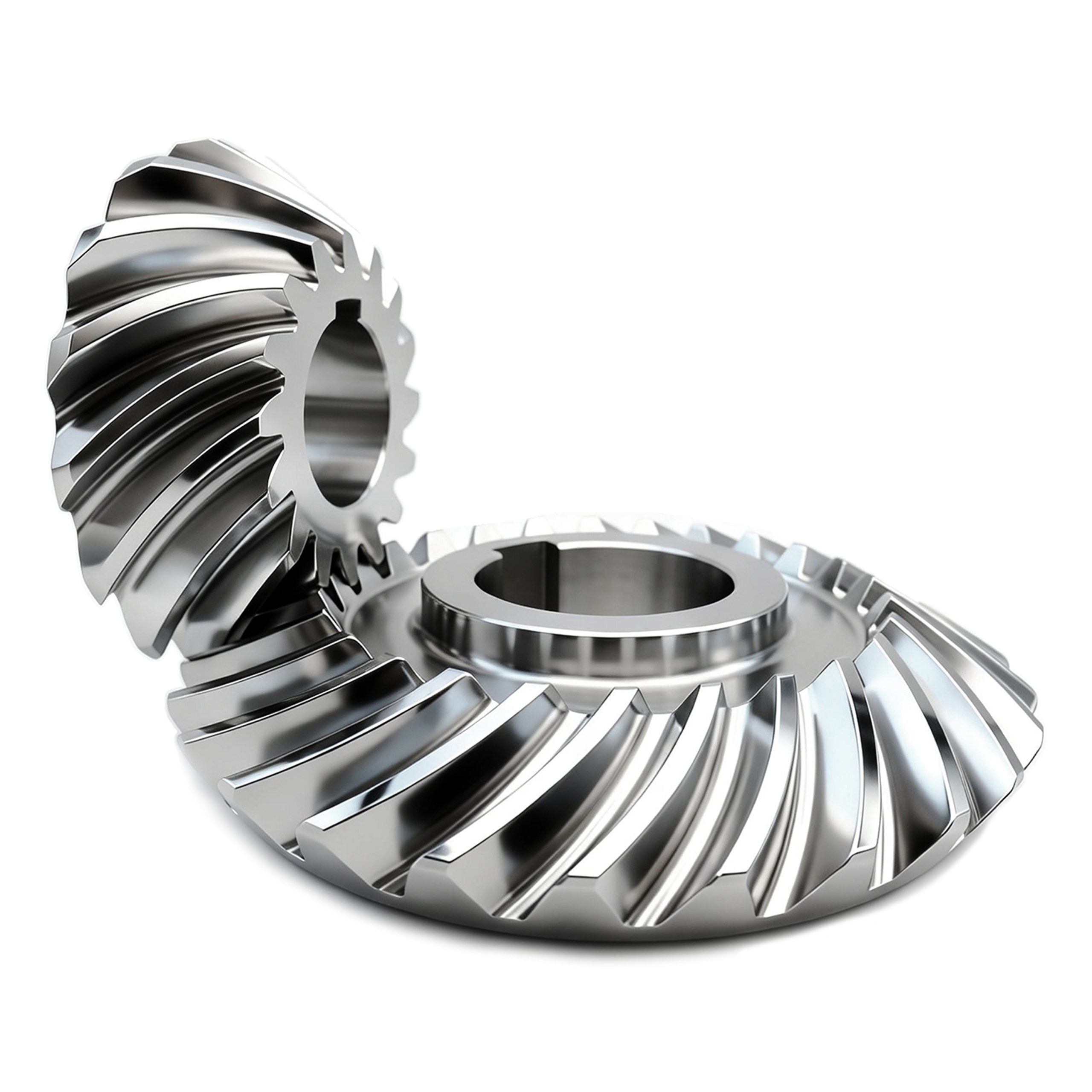

Medium Module Gear
Specification
Module
7.26
Application
Gearbox
Material
20CrMnTi
Heat Treatment
Carburization 58-62HRC
Accuracy
DIN 8
Custom High Precision Lapped Spiral Gear Typical Applications
Medium module gears are extensively utilized across diverse industrial sectors where moderate to high load transmission is required, including:
- Industrial pump systems
- Construction machinery and equipment
- Agricultural machinery and tractors
- Material handling system
- Power generation equipment
- Marine deck machinery
- Heavy-duty printing presses
- Textile manufacturing machinery
Their robust construction and versatile performance characteristics make medium module gears the preferred choice for applications requiring reliable power transmission under moderate to heavy loads, combining durability with operational efficiency in modern industrial systems.
Production process
9-Step Production Process
Forging
Turning
Gear Milling
Heat Treatment
ID & OD Grinding
CNC Machining
Gear Lapping
Marking
Clean & Package
Forging
When gears need high performance that needs to withstand high loads, high stress, impact loads or fatigue loads, forgings are suggested to use. Forging allows metal fibers to be continuously distributed along the gear profile, significantly improving root strength and fatigue life.
Turning
This is the process of cutting and shaping solid materials into precise parts. It uses tools like lathes, mills, and drills to remove excess material. Machining transforms a simple block of metal into a finished, functional component.
Gear Milling
Gear Milling is a gear cutting process that used a rotating from cutter shaped to match the exact space between two gear teeth is plunged into the gear blank. After cutting one tooth space, the blank is indexed to the next position .
Heat Treatment
Gears need to be running with two gears or above two gears, that makes them easy to be worn-out. That’s why most types of gears need to be harden through heat treatment.
ID & OD Grinding
ID grinding, OD grinding, Surface grinding are all belonging to CNC grinding which are the foundational precision abrasive machining processes used to achieve exceptional dimensional accuracy and surface finishes, especially on hardened materials.
CNC Machining
CNC machining is a an automated manufacturing process controlled by pre-programmed computer software and code. Normally gears are designed in CAD software. CAM software translates the CAD model into G-Code, a machine language that dictates tools paths, speeds, feeds, and all movements.
Gear Lapping
Gear lapping is a process for for finishing hardened bevel gears under gleason profile. This process can greatly improve surface finish and noise, however which could not correct geometric errors. It’s often done in paired sets (gears are lapped together and must remain matched). That is usual to use in high-volume bevel gears, where quiet operation is paramount.
Marking
Precision laser marking permanently engraves traceability data (part numbers, date codes, logos) onto gears, ensuring reliable identification and quality tracking throughout the product lifecycle.
Clean & Package
Before shipment, every gear is carefully cleaned, dried, and rust-protected – ensuring they arrive in optimal condition, ready for immediate installation.
Inspection
Strict Quality Inspection
Dimension Inspection
Material Testing
Hardness Inspection
Heat Treatment Testing
Roughness Testing
Accuracy Inspection
Meshing Testing
Dimension Inspection
Material Testing
Hardness Inspection
Heat Treatment Testing
Roughness Testing
Accuracy Inspection
Meshing Testing
Packages
Professional Packaging Safe Arrival
Customized cost-effective packages for products protection. We select multi-model solutions, combining air, sea, or land freight for the optimal balance of cost, speed, and reliability.
Inner Package
Outer Package
Carton
Wooden Package
