Hypoid Gear

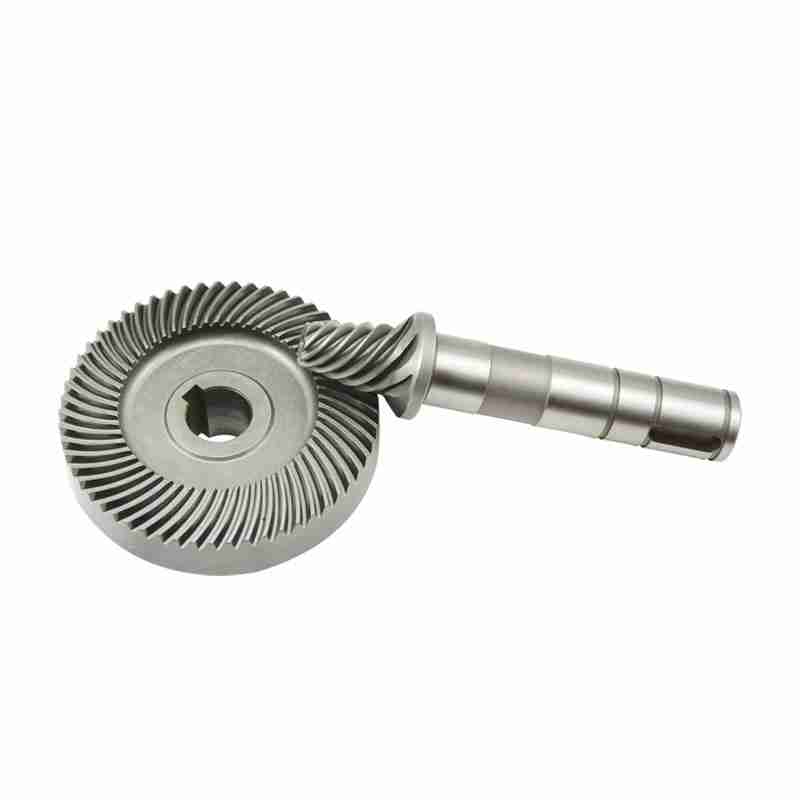

China Custom Hypoid Gear Manufacturer for Your Equipment
26000㎡ In-House Manufacturing Facility
OEM & Reverse Engineering from Customer Samples
High Torque Capacity with Enhanced Durability
Smooth, Low-Noise Operation for Demanding Applications
Flexible Right-Angle Layout for Space-Constrained Equipment
Get A Quote
Hypoid-bevel-gears-heavy-industry-custom-gear-manufacturer-Belon

Why Choose BELON As Your Hypoid Gear Supplier



As one of China’s leading hypoid gear manufacturers, BELON is committed to delivering precision hypoid bevel gears engineered for demanding OEM applications. BELON provides an exceptionally wide and precise range of hypoid gears from Module 0.8 to Module 35. We utilize a variety of advanced custom manufacturing methods, including gear milling, gear lapping, gear grinding, rough cutting, hard cutting and 5-axis machining.

With strict control over machining, heat treatment, lapping, and final inspection, we produce hypoid gears with accurate tooth geometry, consistent contact patterns, high load capacity, and reliable durability. We also provide a complete set of gear quality inspection reports before delivery. From prototypes and small batches to large-scale production, BELON offers customized hypoid gear sets with stable quality, flexible specifications, and dependable performance.

  • ISO 9001 Quality Management System
  • 15+ Years of Gear Manufacturing Experience
  • Trusted by 35 Countries Worldwide
  • 1000+ OEM Projects Delivered Each Year
  • Custom Hypoid Gear Manufacturing from Prototype to Production
Get A Quote

What Hypoid Gears BELON Can Make

Hypoid gear is a type of spiral bevel gear where the axes of the two mating shafts are non-intersecting and non-parallel. The pinion axis is offset (displaced) from the gear axis, either above or below the centerline. This offset is the single most defining feature that differentiates hypoid gears from their cousins. Hypoid gears are a fascinating and sophisticated evolution of bevel and spiral bevel gears, offering unique advantages at the cost of increased complexity.

Features:

  1. Extreme Strength & Load Capacity: The larger, stronger pinion is almost always the weakest link in a gear set. By strengthening it, the overall torque capacity of the hypoid set becomes significantly higher than an equivalent-sized spiral bevel set. This is their single biggest advantage.
  2. Ultra-Quiet & Smooth Operation: The increased sliding action, when properly lubricated and manufactured, results in a gradual, damped tooth engagement that is exceptionally quiet. This made them revolutionary for the automotive industry.
  3. Low Pinion Mounting: The ability to offset the pinion below the gear centerline allows car designers to lower the driveshaft tunnel. This creates more passenger footwell space and enables a lower, sportier vehicle profile. This packaging benefit is equally important as the strength gain.
  4. Higher Gear Ratios in a Single Stage: Hypoid gear sets can achieve higher reduction ratios (e.g., 10:1, 15:1, even 20:1) in a single stage more efficiently than spiral bevels, though not as high as worm gears.
  5. Multiple Tooth Contact: Like spiral bevels, they maintain multiple teeth in contact, distributing load.

BELON provides a wide production range of hypoid gears from Module 0.8 to Module 35 to meet the diverse specifications in different equipment for various industries.

Production Craft
Gear Milling
Gear Lapping
Gear Grinding
5-Axis Machining
Rough Cutting
Hard Cutting
Module
M0.8-M35
M0.8-M35
M1.0-M35
M3.0-M35
M3.0-M35
Min.M3.0
Outer Diameter
10-1600mm
10-1600mm
10-1600mm
200-1600mm
100-2300mm
100-2300mm
Surface Roughness
Ra1.6
Ra 1.6
Ra0.4
Ra0.4
Ra1.6
Ra0.4
Quality Level
DIN7-8
DIN7-8
DIN4
DIN4
DIN7-8
DIN4

Hypoid Gear Size:

BELON manufactures custom hypoid gears for global OEM applications, supporting 1,000+ gear projects annually. With a capability range from Module 0.8 to Module 35, we deliver high-precision hypoid gears featuring excellent tooth accuracy, smooth transmission, high load capacity, and long service life. From prototypes to mass production, BELON provides reliable gear solutions tailored to your application needs.
Hypoid-bevel-gears-heavy-industry-custom-gear-manufacturer-Belon

Hypoid Bevel Gears For Heavy Industry

  • Material: 18CrNiMo7-6
  • Heat treatment: Case Carburizing 58-62HRC
  • Accuracy: DIN6
More About
High-torque-hypoid-bevel-gears-custom-gear-manufacturer-gear-supplier-Belon

High-Torque Hypoid Bevel Gears for Industrial Speed Reducers

  • Material: 18CrNiMo7-6
  • Heat treatment: Case Carburizing 58-62HRC
  • Accuracy: DIN8
More About
Precision-hypoid-bevel-gears-custom-gear-manufacturer-gear-supplier-Belon

Precision Hypoid Bevel Gears for Compact Power Transmission

  • Material: SAE8620
  • Heat treatment: Case Carburizing 58-62HRC
  • Accuracy: DIN8
More About

How We Can Make Hypoid Gears

Belon offers a comprehensive range of hypoid gear manufacturing crafts to achieve different levels of accuracy, performance, production volumes and cost, including gear milling, gear lapping, gear grinding. Based on your gear specifications, we select and recommend the most suitable manufacturing process for your hypoid gear projects either at DIN8-9 under lapping or DIN5-6 under grinding.

Hypoid Gear Milling

The hypoid gear cutting tool and hypoid gear blank rotate under controlled motion to form the tooth geometry. Precise milling follows the curved tooth surfaces, ensuring consistent tooth shape and smooth surface quality.

Hypoid Gear Lapping

The lapping for hypoid gears is a finishing operation used to improve the surface finish, correct minor irregularities, and ensure proper meshing of the gear teeth. The process is important for hypoid gears, which are used in applications requiring high precision and smooth operation.

How Do We Inspect Hypoid Gear

BELON performs comprehensive inspection of hypoid gears according to the customer's drawings including dimensions, materials, heat treatment, accuracy and also for matched hypoid gear sets, final meshing testing is performed to verify tooth contact, backlash, mounting conditions, and smooth running before shipment.

Hypoid Gear Hardness Testing



Hardness inspection is performed after heat treatment to verify that the hypoid gears meet the specified surface hardness and hardness requirements. We check the hardness in order to verify heat-treatment consistency and support the required wear resistance and service performance of the finished hypoid gears.







Contact BELON Now
hypoid-gear-hardness-testing

Hypoid Gear Set Meshing Testing



Hypoid gears are normally supplied as matched gear sets, so individual gear accuracy alone does not fully represent the final transmission performance. BELON performs final meshing testing by assembling the hypoid pinion and hypoid gear under specified mounting conditions. The test helps identify potential issues such as uneven tooth contact, excessive backlash, tight meshing, interference, or abnormal running resistance before shipment. A meshing inspection report can be provided to document the measured results and support customer approval.







Contact BELON Now
hypoid-gear-set-meshing-test

Advantages of Our Hypoid Gear

BELON manufactures high-precision hypoid gears engineered for demanding OEM applications requiring high torque transmission, smooth operation, and long-term reliability.
gear-icon

Wide Module Capability M0.8–M35

Precision hypoid gears for compact systems and heavy-duty transmission applications.
gear-icon

Custom OEM Manufacturing

Built to your drawings, samples, and technical specifications.
gear-icon

Optimized Gear Performance

Engineered for high torque capacity, smooth meshing, and quiet operation.
gear-icon

Reverse Engineering Support

From design review to performance optimization and part reproduction.
gear-icon

Prototype to Production Capability

Flexible manufacturing from initial prototypes to volume production.
gear-icon

Global OEM Experience

Trusted by industrial customers across 35+ countries.

Download to Learn More about Us

Explore BELON’s precision gear manufacturing expertise and strict quality commitment. You can download our company brochure, ISO certificate and hypoid gear inspection reports to assess our technical competence, production scale and quality control standards.
file-text-belon

ISO Certificate

Our official ISO certification and full-set quality management documentation.
Download
file-text-belon

Company Brochure

Discover BELON’s manufacturing workflows, production strengths and industrial sectors we serve.
Download
file-text-belon

Quality Report Template

Preview the quality report templates for your custom hypoid gear project.
Download

Hypoid Gear FAQs

Standard spiral bevel gears have intersecting axes, while hypoid gears feature offset non-intersecting axes. Hypoid gears are essentially a modified type of spiral bevel gear. The axis offset allows the pinion to have a larger diameter and more teeth compared with an equivalent spiral bevel pinion. This brings higher load capacity and smoother meshing.

However, hypoid gear teeth slide during engagement, which creates more friction and requires special hypoid gear oil for lubrication. Spiral bevel gears have less sliding friction and work on intersecting shafts.

Hypoid gear inspection covers geometry measurement, contact pattern testing and batch quality verification. We measure single pitch error, cumulative pitch error, tooth profile and lead deviation on a Gleason CMM gear tester. For matched hypoid spiral bevel gear pairs, we perform meshing tests under specified assembly settings to check tooth contact pattern, mounting distance, backlash and rotation smoothness. Full dimensional reports and meshing test records will be provided before shipment. Material and heat treatment verification are also included in our quality workflow.

Hypoid gears are widely adopted mainly because of their shaft offset design. The offset axis lowers the drive shaft position, which is critical for vehicle rear axles. They deliver high torque transmission with quiet operation and stronger load capacity. This makes hypoid gears ideal for automotive, heavy truck and off-highway equipment where compact layout, high torque and low noise are required.

BELON can provide you with custom hypoid gears according to different applications like differential hypoid gear.

  • Advantages: Offset shaft arrangement; higher load capacity; quieter meshing; compact heavy-duty transmission.
  • Disadvantages: Tooth sliding friction generates heat; special EP hypoid lubricant required; complex manufacturing and higher production cost; sensitive to assembly adjustment.

Yes, Belon, as one of the leading hypoid gear manufacturers in China, provides full-custom hypoid gear solutions for non-standard specifications. Supported with advanced equipment and professional gear engineering team, we customize special reduction ratios, unique shaft offsets, large-diameter heavy-duty hypoid gears, and ultra-precision small-module hypoid gears according to customer drawings and working conditions.

We offer one-stop services including gear design parameter optimization, contact pattern simulation, prototype verification and mass production, solving personalized non-standard transmission customization demands for various industries.

Your Precision
Hypoid Gear Partner
From prototype to production, BELON delivers precision hypoid gears tailored to your application. Send us your gear drawings, physical samples, or technical specifications today and get a fast technical review and quote.
