Helical gears operate through the meshing of angled teeth between two gears mounted on parallel shafts. As the driving gear rotates, the inclined teeth engage gradually with the mating gear, allowing multiple teeth to be in contact at the same time. This progressive engagement results in smoother transmission, reduced vibration, and higher load‑carrying capacity compared with spur gears, making helical gears ideal for high‑speed and high‑power applications.

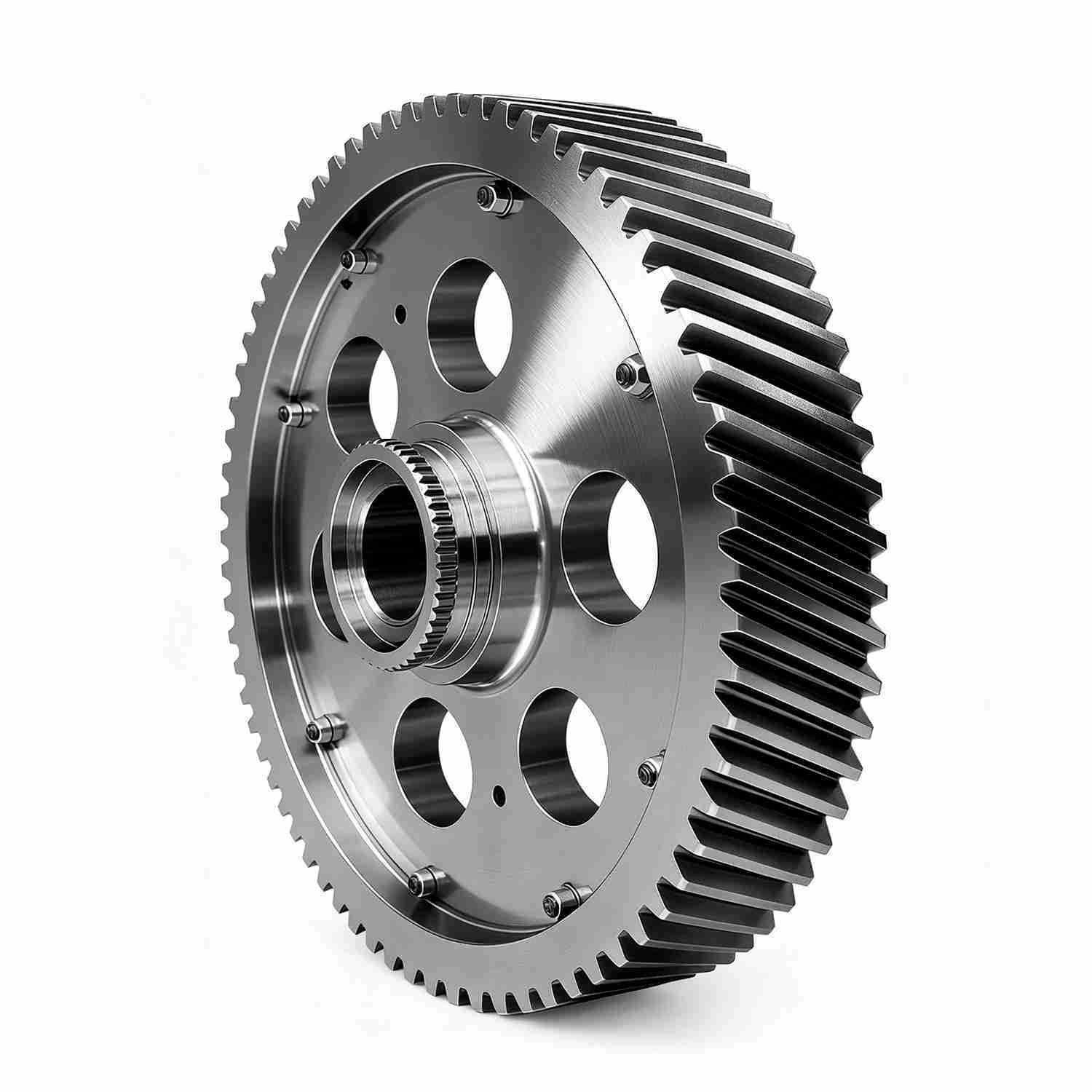

Large Helical Gear
Specification
Module
20
Application
Helical Gearbox
Material
18CrNiMo7-6
Heat Treatment
Carburizing 58-62HRC
Accuracy
DIN 6
Typical Applications of Custom High Precision Helical Gears
High precision helical gears are widely applied in modern industrial systems where stable and efficient power transmission is required. Typical applications include industrial gearboxes, automotive transmission systems, conveyor equipment, mining machinery, robotics and automation systems, as well as packaging and material handling equipment. Thanks to their smooth operation, durability, and high torque capacity, helical gears have become a key component in many advanced mechanical and manufacturing industries.
Production process
6-Step Production Process
Forging
Turning
Gear Cutting
Heat Treatment
ID & OD & Surface Grinding
Tooth Grinding
Forging
When gears need high performance that needs to withstand high loads, high stress, impact loads or fatigue loads, forgings are suggested to use. Forging allows metal fibers to be continuously distributed along the gear profile, significantly improving root strength and fatigue life.
Turning
This is the process of cutting and shaping solid materials into precise parts. It uses tools like lathes, mills, and drills to remove excess material. Machining transforms a simple block of metal into a finished, functional component.
Gear Cutting
Gear Cutting includes all processes to create gear teeth after rough or fine machining. It shapes teeth to ensure smooth and efficient power transfer for performance, strength and cost efficiency.
Heat Treatment
Gears need to be running with two gears or above two gears, that makes them easy to be worn-out. That’s why most types of gears need to be harden through heat treatment.
ID & OD & Surface Grinding
ID grinding, OD grinding, Surface grinding are all belonging to CNC grinding which are the foundational precision abrasive machining processes used to achieve exceptional dimensional accuracy and surface finishes, especially on hardened materials.
Tooth Grinding
Tooth Grinding are the final processes are applied after heat treatment to correct distortion, improve geometry, and achieve the final surface finish necessary for quiet, efficient power transmission.
Inspection
Strict Quality Inspection
Dimension Inspection
Material Inspection
Heat Treatment Testing
UT & MT Testing
Meshing Testing
Accuracy Testing
Dimension Inspection
Material Inspection
Heat Treatment Testing
UT & MT Testing
Meshing Testing
Accuracy Testing
Packages
Professional Packaging Safe Arrival
Customized cost-effective packages for products protection. We select multi-model solutions, combining air, sea, or land freight for the optimal balance of cost, speed, and reliability.
Inner Package
Out Package
Carton
Wooden Package
Similar products
You May Be Interested In
Helical Gear For Mixers
- Material: 40CrNiMo
- Heat treatment: Quenched and tempered 28-32HRC
- Accuracy: ISO 7
Medium-high Precision Helical Gear
- Material: 20MnCr5
- Heat treatment: CASE CARBURISED SURFACE HARDNESS 58 – 62 HRC CORE HARDNESS 30 – 42 HRC
- Accuracy: DIN 8
Your Precision
Transmission Partner
Do you have drawings to be implemented, or problems to be solved? Please feel free to contact us. From initial inquiry and technical specification confirmation to production and delivery, our dedicated team will provide you with one-on-one service, ensuring that every step meets your stringent requirements for precision.
