Spiral bevel gears are engineered with curved, oblique teeth that enable a smoother, more gradual engagement compared to straight bevel gears, making them ideal for high-speed, high-torque, and heavy-load applications.

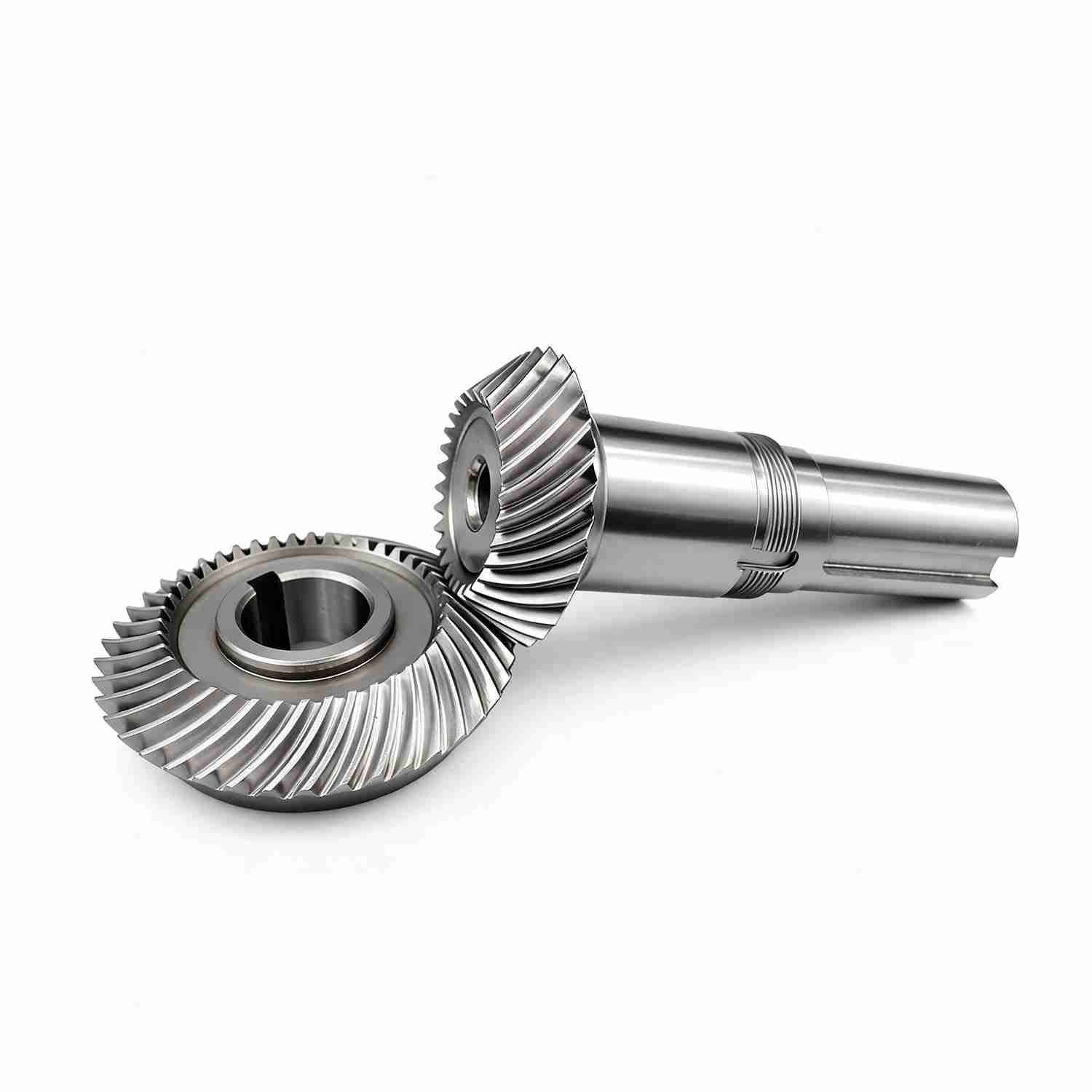

Precision Ground Spiral Bevel Gears
Specification
Module
2.06
Application
Helical bevel Gearbox
Material
SAE8620
Heat Treatment
Case Carburizing 58-62HRC
Accuracy
DIN 6
Ground Spiral Bevel Gears Typical Applications
Ground spiral bevel gears are widely used in various industrial and mechanical systems, including:
- Aerospace & Defense, such as helicopter main gearboxes or aircraft flap actuation systems.
- High-Performance Industrial Robotics
Ground spiral bevel gears optimize residual compressive stress distribution, significantly improving tooth bending fatigue resistance.
Production process
6-Step Production Process
Forging
Turning
Gear Milling
Heat Treatment
ID & OD Grinding
Tooth Grinding
Forging
When gears need high performance that needs to withstand high loads, high stress, impact loads or fatigue loads, forgings are suggested to use. Forging allows metal fibers to be continuously distributed along the gear profile, significantly improving root strength and fatigue life.
Turning
This is the process of cutting and shaping solid materials into precise parts. It uses tools like lathes, mills, and drills to remove excess material. Machining transforms a simple block of metal into a finished, functional component.
Gear Milling
Gear Milling is a gear cutting process that used a rotating from cutter shaped to match the exact space between two gear teeth is plunged into the gear blank. After cutting one tooth space, the blank is indexed to the next position .
Heat Treatment
Gears need to be running with two gears or above two gears, that makes them easy to be worn-out. That’s why most types of gears need to be harden through heat treatment.
ID & OD Grinding
ID grinding, OD grinding, Surface grinding are all belonging to CNC grinding which are the foundational precision abrasive machining processes used to achieve exceptional dimensional accuracy and surface finishes, especially on hardened materials.
Tooth Grinding
Tooth Grinding are the final processes are applied after heat treatment to correct distortion, improve geometry, and achieve the final surface finish necessary for quiet, efficient power transmission.
Inspection
Strict Quality Inspection
Dimension Inspection
Material Testing
Hardness Inspection
Heat Treatment Testing
Roughness Testing
Accuracy Inspection
Meshing Testing
Dimension Inspection
Material Testing
Hardness Inspection
Heat Treatment Testing
Roughness Testing
Accuracy Inspection
Meshing Testing
Packages
Professional Packaging Safe Arrival
Customized cost-effective packages for products protection. We select multi-model solutions, combining air, sea, or land freight for the optimal balance of cost, speed, and reliability.
Inner Package
Out Package
Carton
Wooden Package
