Cement

Cement-gear-supplier-manufacturer-crusher-gear-conveyor-gear-supplier

Cement

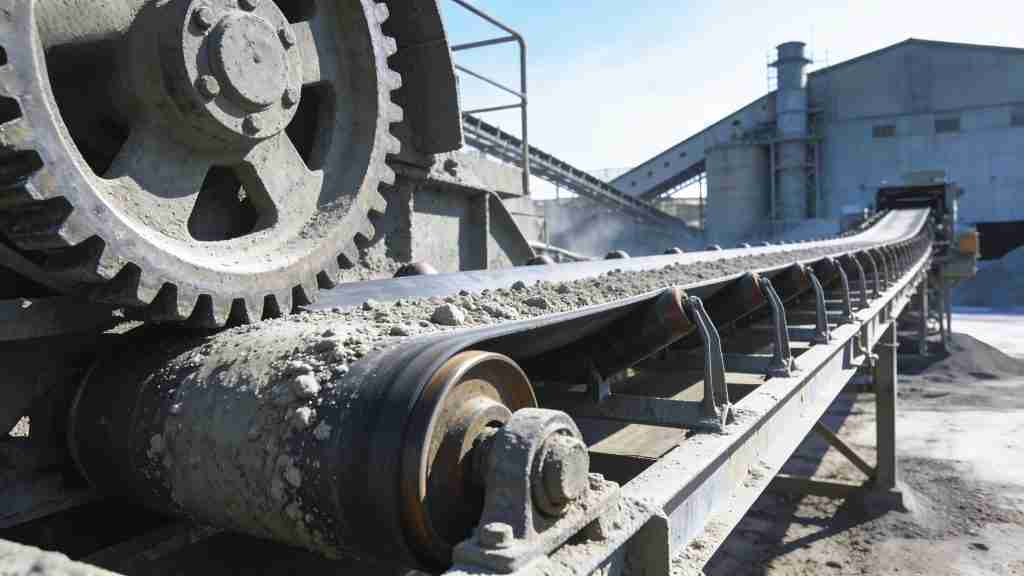

Cement gear is manufactured with high-alloy materials and rigorous heat treatment process, achieving outstanding abrasion resistance and structural stability for high-load and harsh dusty working conditions in cement production lines. The cement industry is an important pillar of modern architecture and infrastructure construction. It operates under some of the harshest conditions: low-speed, heavy loads, continuous operation, high temperatures, and high concentrations of dust. From primary crushing to final cement bagging, every step relies on durable and efficient power transmission. And gears play an indispensable role in cement production in crushers, conveyors, cement mills, rotary kiln and other equipment, effectively improving production efficiency and stability. Belon provide high-precision gear solutions designed to meet the rigorous demands of modern cement production lines.

Gear Applications
Across Cement Processing

Crusher Gear

A crusher gear is the gear set that converts motor power into the high-torque, slow-speed motion a crushing chamber needs — most typically the spiral bevel gear pair that drives the eccentric shaft in a cone or gyratory crusher, or the helical and planetary gears inside the crusher’s drive reducer.

BELON manufactures crusher gears to the machine. We start from your crusher model, motor power, eccentric speed and chamber configuration, and work backwards to the tooth form. We also reverse-engineer from a worn or broken sample — tooth form reconstruction from a pitted bevel gear is routine work here — and we support the aftermarket with matched pairs, rebuild kits and a written teardown verdict on any unit you send back.

  • Cone crushers — Spiral bevel gear pair driving the eccentric shaft, with the horizontal drive pinion and, on larger frames, a gear-type coupling to the motor.
  • Gyratory crushers — Large-diameter spiral bevel pairs carrying the highest torque in the circuit, plus the eccentric drive pinion; case depth and root geometry set for tramp-metal shock.
  • Roll crushers and sizers. Planetary or helical-helical reducers on the roll shafts, with gear-type couplings transmitting torque while tolerating roll-gap adjustment.

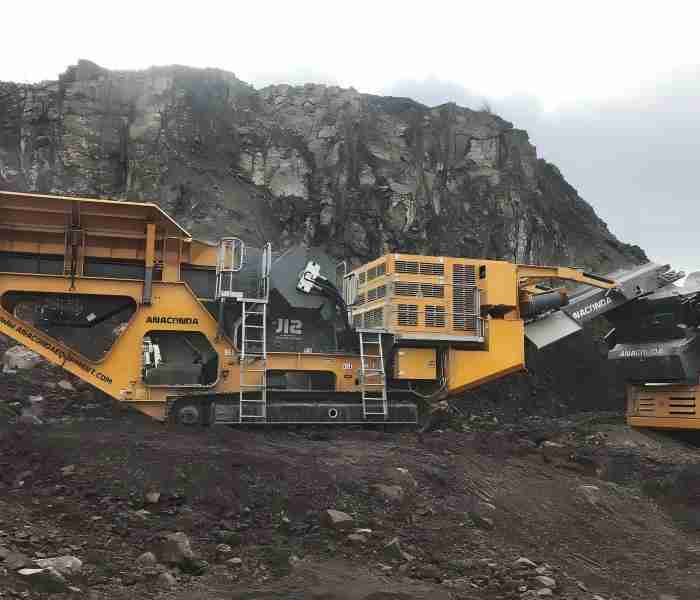

  • Mobile and tracked crushing plants. Compact bevel-helical and planetary reducers where the drive must fit a limited envelope and survive vibration on a moving chassis.
  • Crusher drive reducers (all types). Hardened helical and bevel-helical gear units between motor and crusher.
  • Grinding mills — Girth gear and pinion open gearing for ball, rod and SAG mills, up to large diameters, with a wear allowance built into the tooth thickness specification.
  • Aftermarket and rebuild. Matched bevel pairs, replacement pinions, complete gear trains and exchange units quoted against OEM part numbers.
Crusher-gear-cement-gear-supplier-gear-solutions-Beloncement-gear-crusher-spiral-bevel-gear-manufacturer-Belon

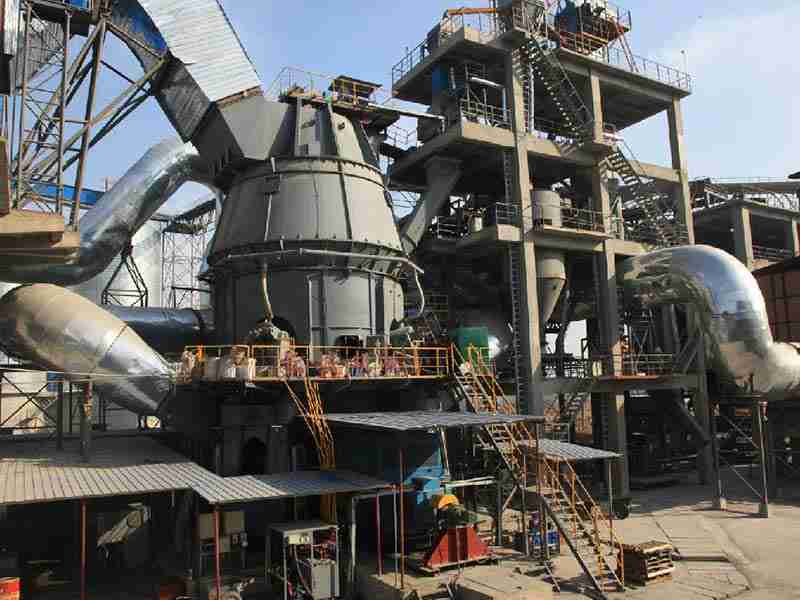

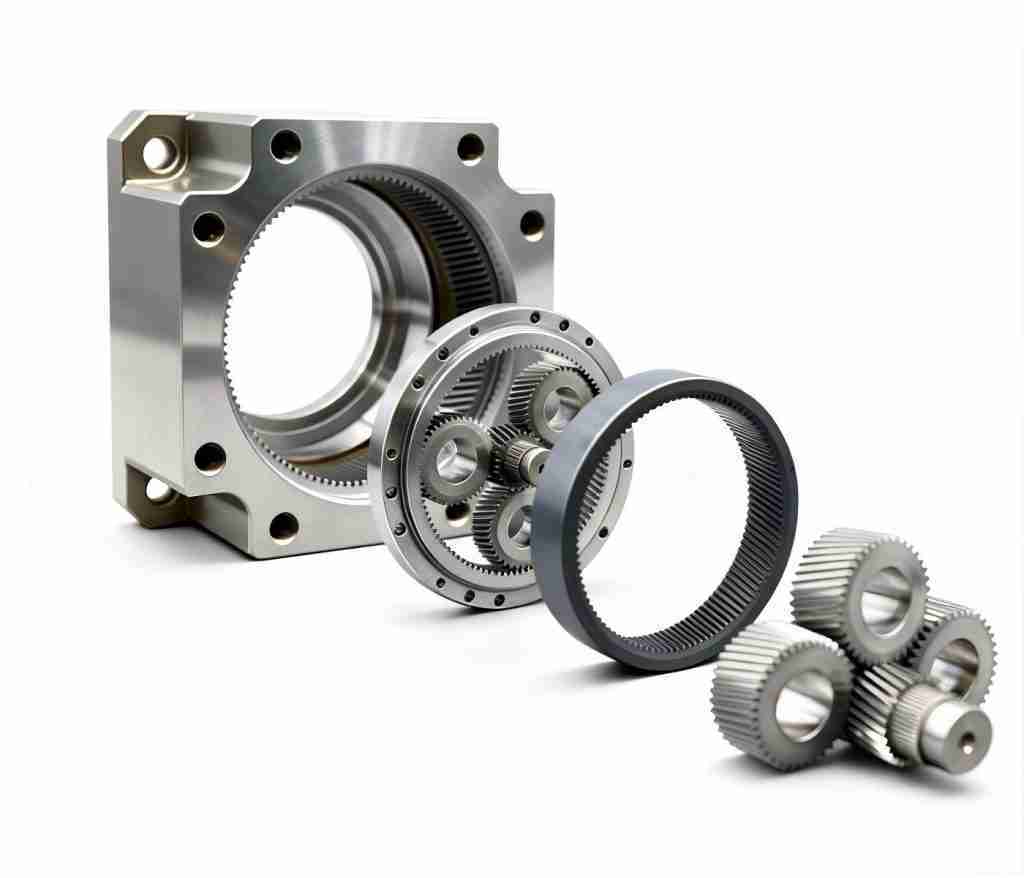

Raw Mills

For raw material grinding, common equipment like Vertical Roller Mills (VRM), Ball Mills. It’s for grinding the crushed materials into an extremely fine “raw meal” powder.

Mill Gear Types:

Raw-mill-gear-rolling-mill-gear-cement-gear-manufacturerRaw-mills-gear-cement-gear-supplier-manufacturer-Belon

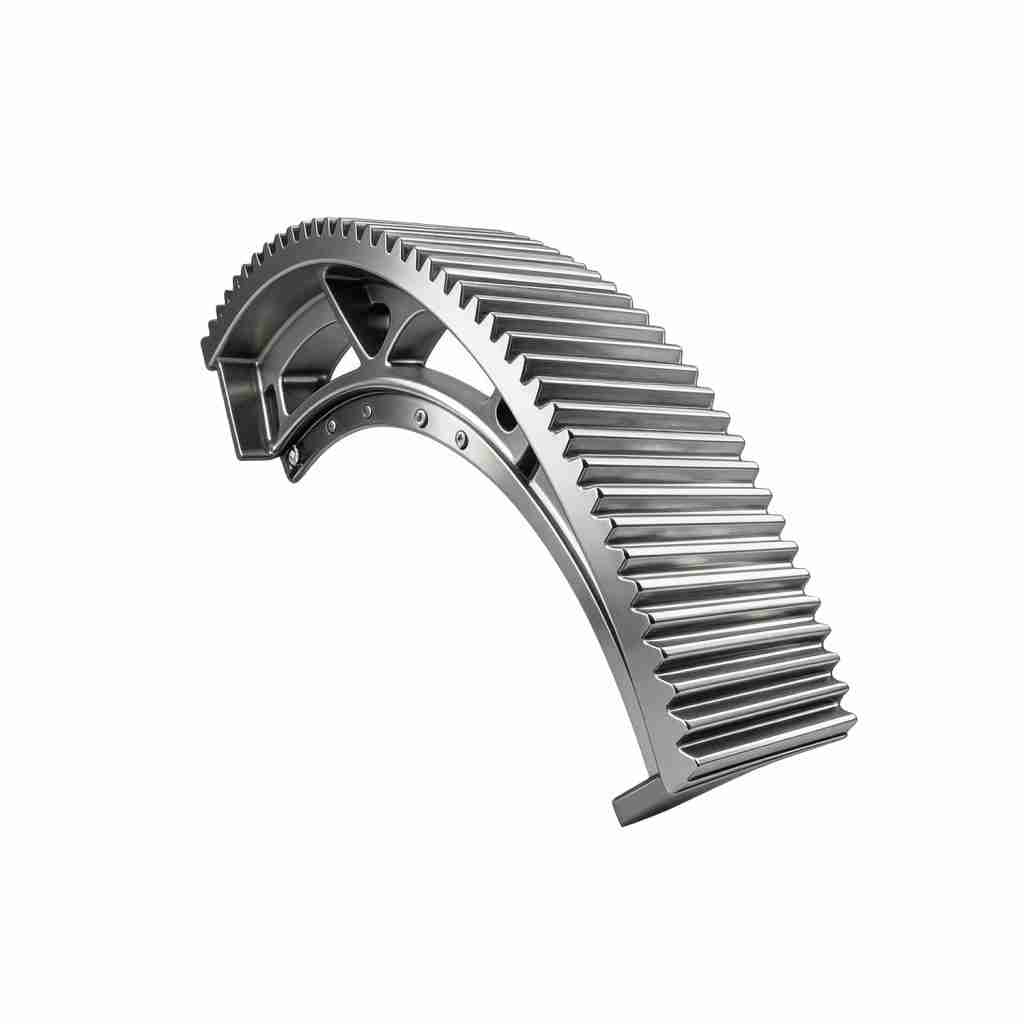

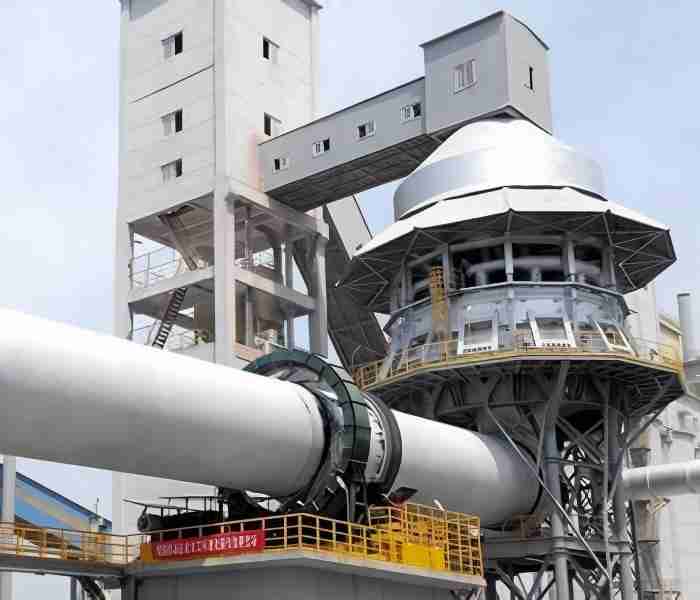

The Kiln

For pyro processing, common equipment Rotary Kilns. It’s a slowly rotating, slightly inclined steel tube that heats the raw meal to ~1450°C to produce clinker.

Kiln Gear Types:

Rotary-kiln-gear-cement-gear-manufacturer-gear-solutions-BelonRotary-kiln-gear-cement-gear-manufacturer-belon

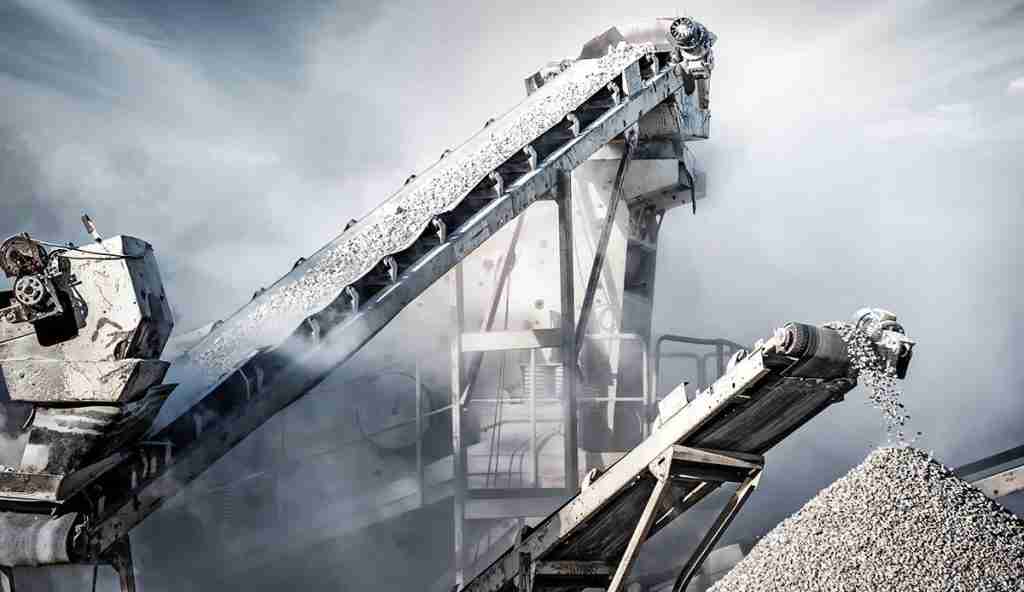

Conveyors Gear & Elevator Gear

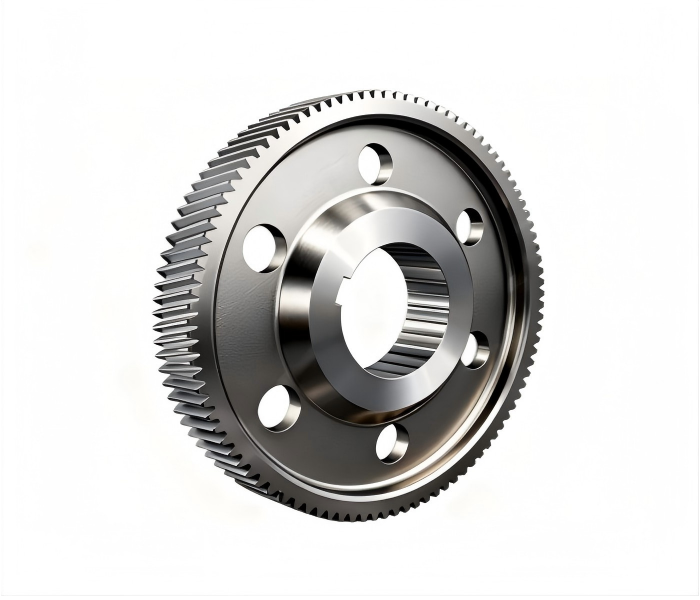

Conveyor gears are the gear sets inside the drive unit of a belt, chain, screw or apron conveyor. Elevator gears are the equivalent in a bucket elevator: the reducer at the head shaft that lifts the loaded buckets through the whole height of the machine.

BELON builds custom conveyor and elevator gear sets against the drive’s real duty. We review the conveyor’s or elevator’s starting condition, the stall torque implied by a jam, the backstop or holdback arrangement, and the ambient dust and temperature, then specify the tooth form and heat treatment to match.

  • Aggregate and cement plants: helical and bevel-helical reducers, spiral bevel pairs in right-angle units, planetary stages for high-power drives, hardened spur gears in open or semi-enclosed drives.
  • Mining: heavy-duty bevel-helical reducers, planetary gears for armored-face and chain conveyors, backstop-integrated gear sets designed for stall torque.
  • Port and bulk terminals: right-angle bevel-helical reducers, planetary travel and luffing gears where the conveyor is mounted on a moving structure, hollow-shaft output gears for pulley mounting.
  • Grain, feed and food bulk handling: helical reducers, worm gear sets on light-duty and low-noise elevators, through-hardened gears where wash-down limits lubrication choice.
  • Power generation and metallurgy: hardened helical reducers with high thermal margin, planetary drives for feeder and chain duty, wear-resistant surface treatments for abrasive service.
  • Conveyor drive service and rebuild: matched helical and bevel pairs, complete gear trains, rebuild kits quoted against OEM part numbers.
Conveyor-Elevator-Gear-Cement-Gear-Manufacturer-Gear-Solution-BelonConveyor-Elevator-Gear-Cement-Gear-Manufacturer-Supplier-Belon-sailing-boat-gear-rolling-mill-gear

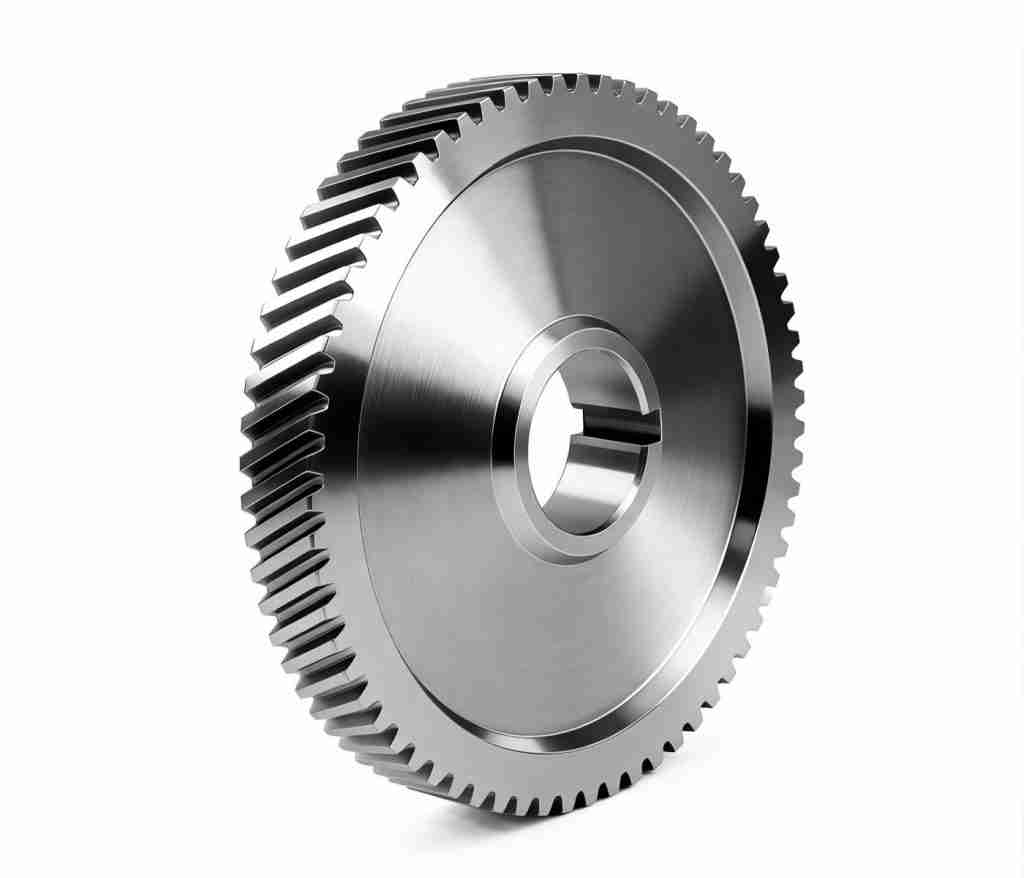

Separators (Classifiers)

Equipment: High-Efficiency Separators (dynamic classifiers).

Function: Separating fine particles from coarse particles, returning oversized material for regrinding.

Separator Gear Types:

Separator-gear-cement-gear-supplier-BelonSeparator-gear-cement-gear-supplier-gear-solutions-Belon
